Sofa Backrest Adjustment Mechanism
Product Code ZM6-001
A sofa backrest adjustment mechanism moves the back section of sofas and armchairs forward and backward to change the seat depth; in the trade it is also known as a back pull mechanism…
Read the full description- Dimensions
- 220 mm and 260 mm
- Profile
- L22 / L26 tubular
- Travel
- About 22 cm in total; 11 cm forward and 11 cm back from upright
Pricing depends on the project. Send us your dimensions and quantity and we will reply the same day.
Ordering from outside Turkey? Send a photo or drawing, the quantity and your destination country on WhatsApp or by email, and we will reply the same day. We already ship to Russia, Georgia, Iraq, Syria and the Balkans.
- Made in our own facility
- Custom sizes available
- Same-day reply
Product Information
Product Overview

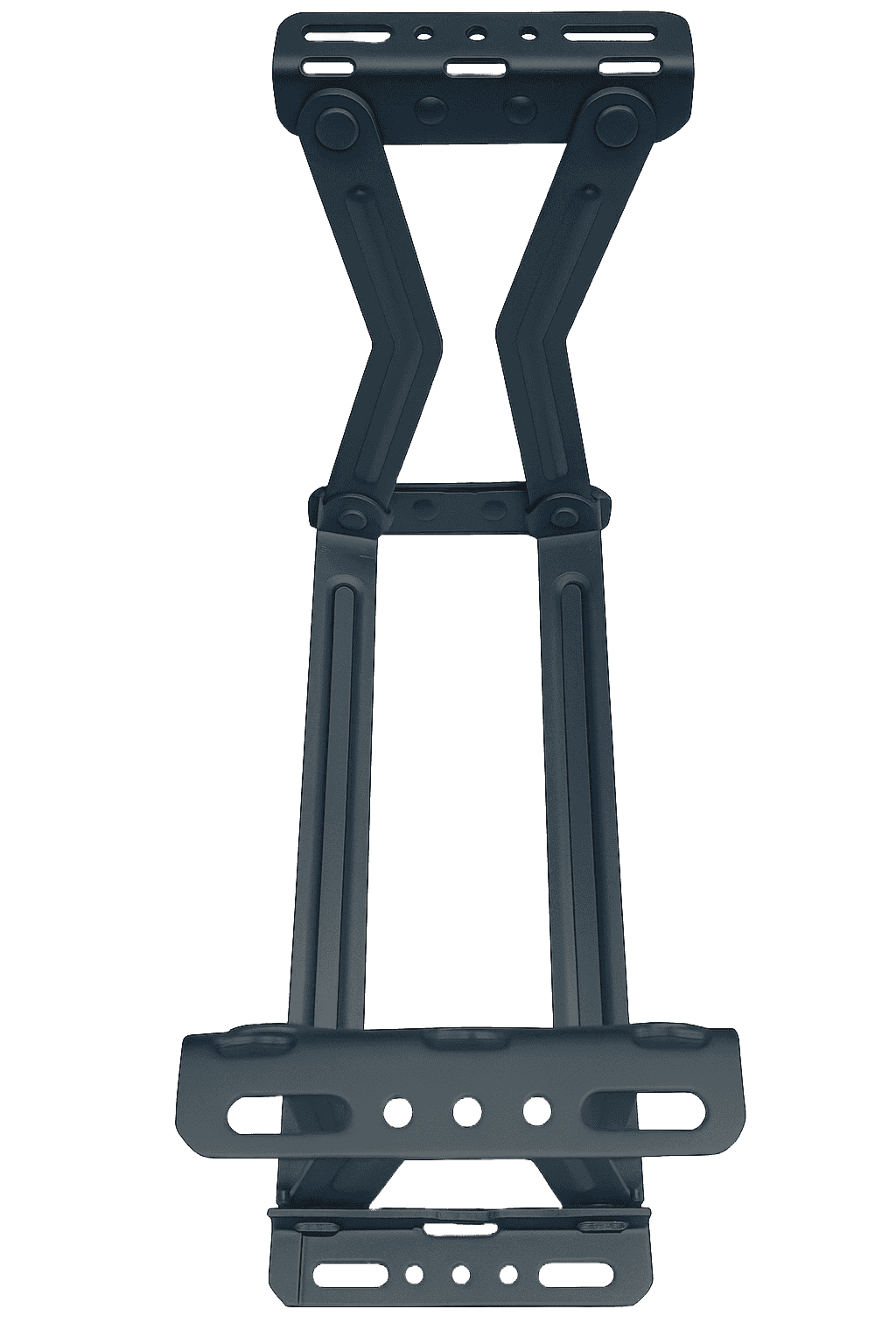

A sofa backrest adjustment mechanism moves the back section of sofas and armchairs forward and backward to change the seat depth; in the trade it is also known as a back pull mechanism. Scissor arms on each side connect the back to the frame and two steel tubes join the left and right units: pulled forward by hand, the back moves to the sitting position, and pushed back, it moves to the relaxing position that deepens the seat, resting in one of these two end positions. The set sits under the upholstery and does not change the outward look of the furniture.
Product Advantages
- Two seat depths in one sofa: pulled forward, the back gives the sitting position; pushed back, the relaxing position.
- No separate lever or button is needed; the back changes position by being pulled or pushed by hand.
- The left and right units form a single welded set with two steel tubes, so both sides are fitted together rather than one by one.
- The set bolts to the frame at four points, so the load is not carried by a single line of screws.
Technical Information
| Dimensions | 220 mm and 260 mm |
|---|---|
| Profile | L22 / L26 tubular |
| Travel | About 22 cm in total; 11 cm forward and 11 cm back from upright |
| Material | Steel |
| Surface Finish | Electrostatic powder coating |
| Mounting | 4-point connection |
| Custom Production | Available in different sizes and surface finishes |
Usage Areas
Sofas
pulled forward, the back gives the sitting position; pushed back, the relaxing position with a deeper seat.
Armchairs
offers two seat depths within the same frame.
TV and lounge chairs
for long sessions the back is pushed back for a deeper seat.
Frequently Asked Questions
How does a backrest adjustment mechanism work?
Scissor arms on each side connect the back to the frame. Pulled forward by hand, the back moves to the sitting position; pushed back, it moves to the relaxing position, where the seat is deeper. No separate lever or button is needed.
How many positions does a backrest adjustment mechanism have?
Two: sitting and relaxing. The mechanism rests in one of these two end positions; there are no intermediate steps.
How many backrest adjustment sets does a sofa need?
There is no fixed number; the quantity is set per project according to the width of the back. Send us the back dimensions and we will work out the quantity with you.
Does it need maintenance?
No routine maintenance programme is required. Check the pivots and fixing screws from time to time, depending on how heavily the furniture is used, and apply a suitable lubricant to the pivots if squeaking starts.
Which sizes is the back-pull mechanism produced in?
The standard set in the 2026 catalogue is produced in 220 and 260 mm sizes, with L22 and L26 tubing. For other dimensions we manufacture on a project basis.
How many points does it bolt to the frame at?
The standard set is installed with a four-point connection. Because the force is spread across four points, no single line of screws is overloaded.
If your question is not answered here, just ask. Send the dimensions and quantity and we will reply the same day.
